Commodore USA

Recreating the Legendary Commodore 64

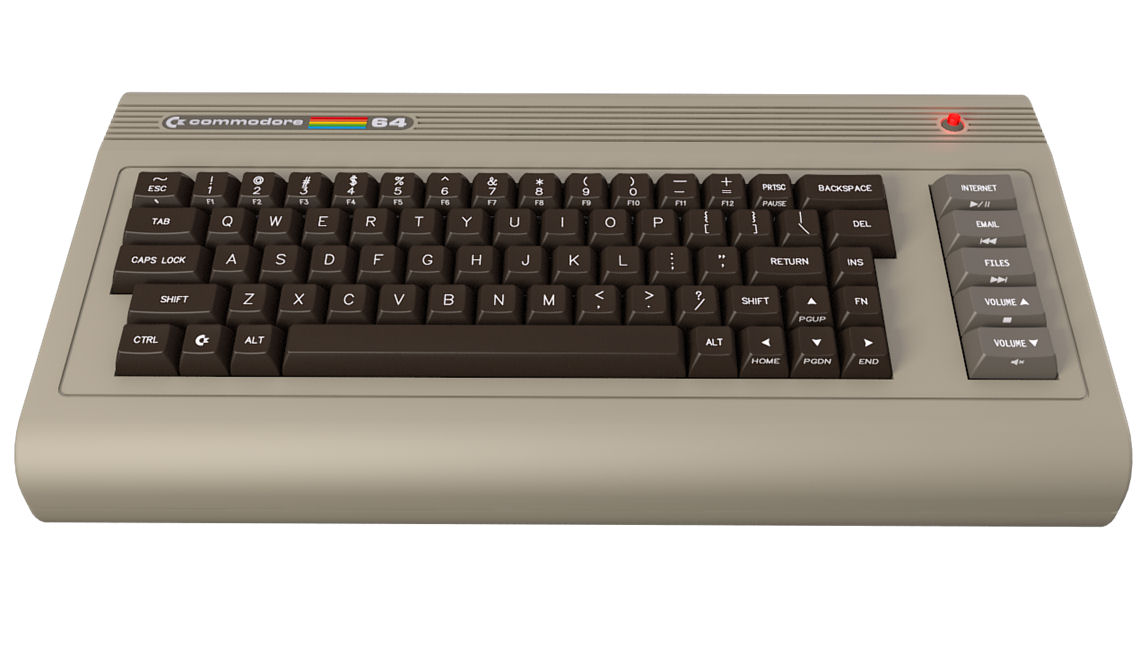

It's back... and better than ever! The new Commodore 64 is a modern functional PC as close to the original in design as humanly possible. It houses a modern mini-ITX PC motherboard featuring a Dual Core 525 Atom processor and the latest nVidia ION2 graphics chipset. It comes in the original taupe brown/beige color, with other colors to follow.

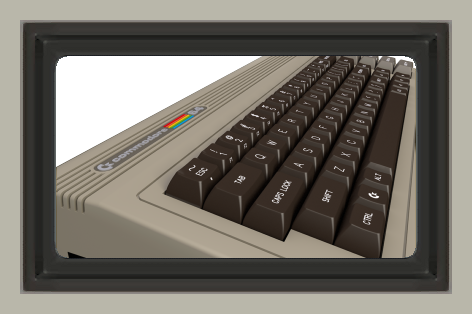

A Keyboard Better Than the Original

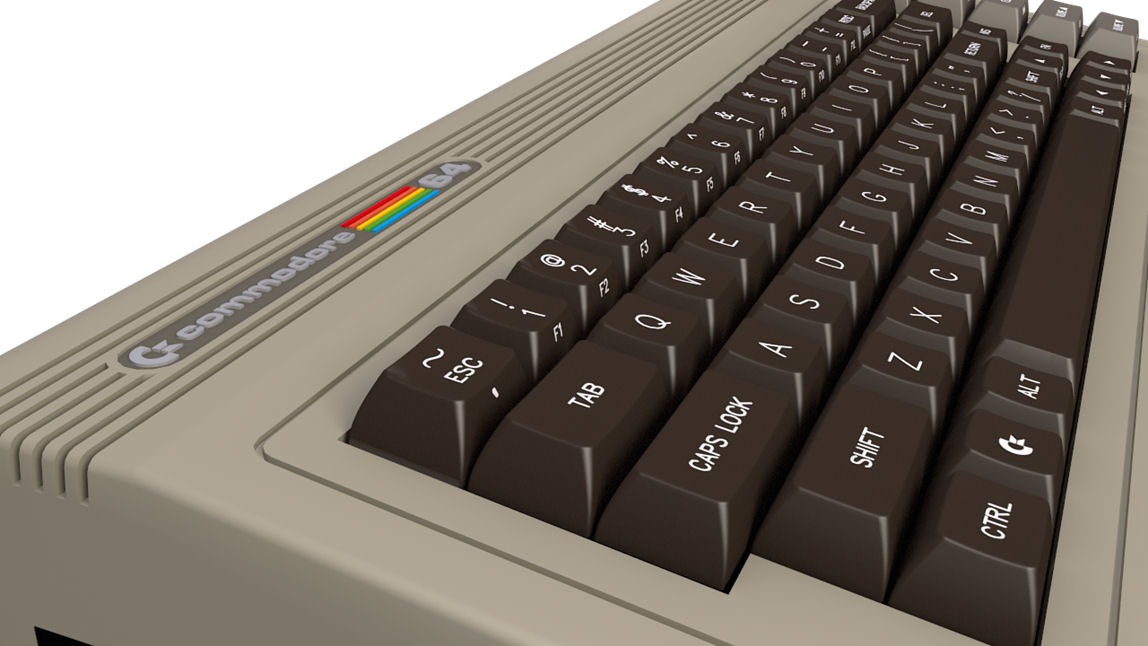

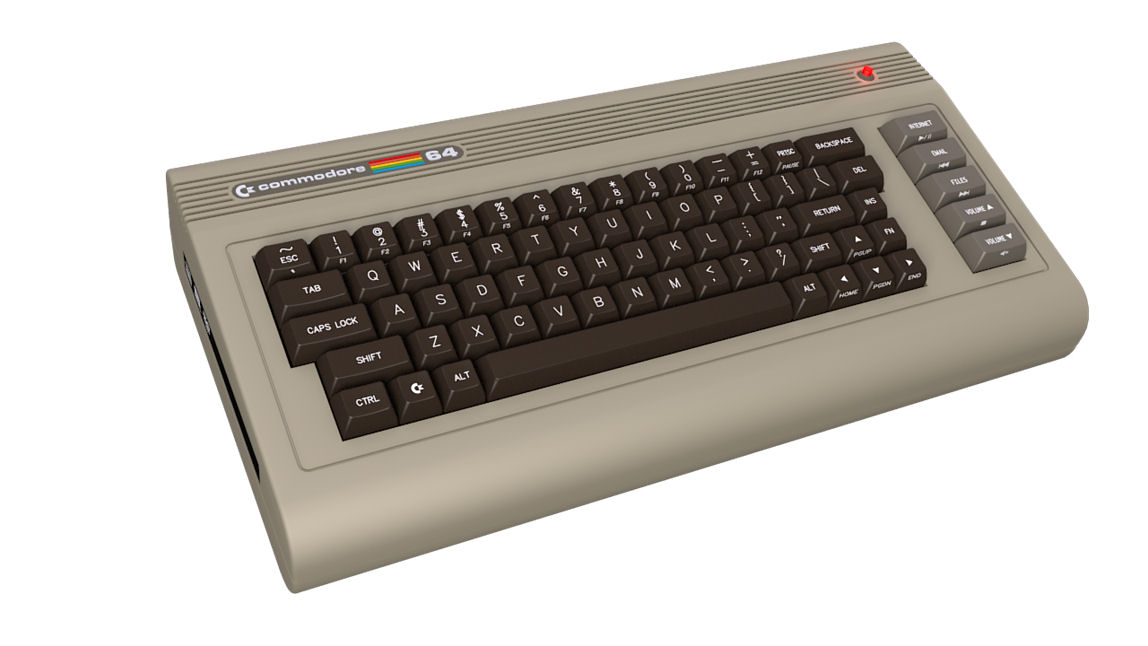

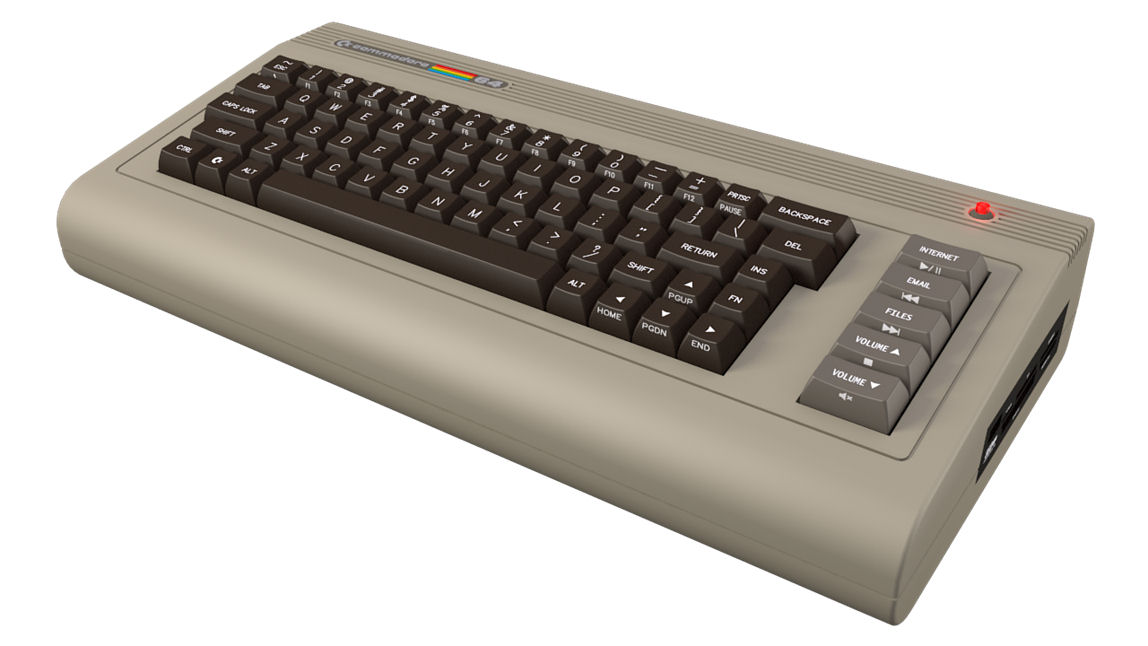

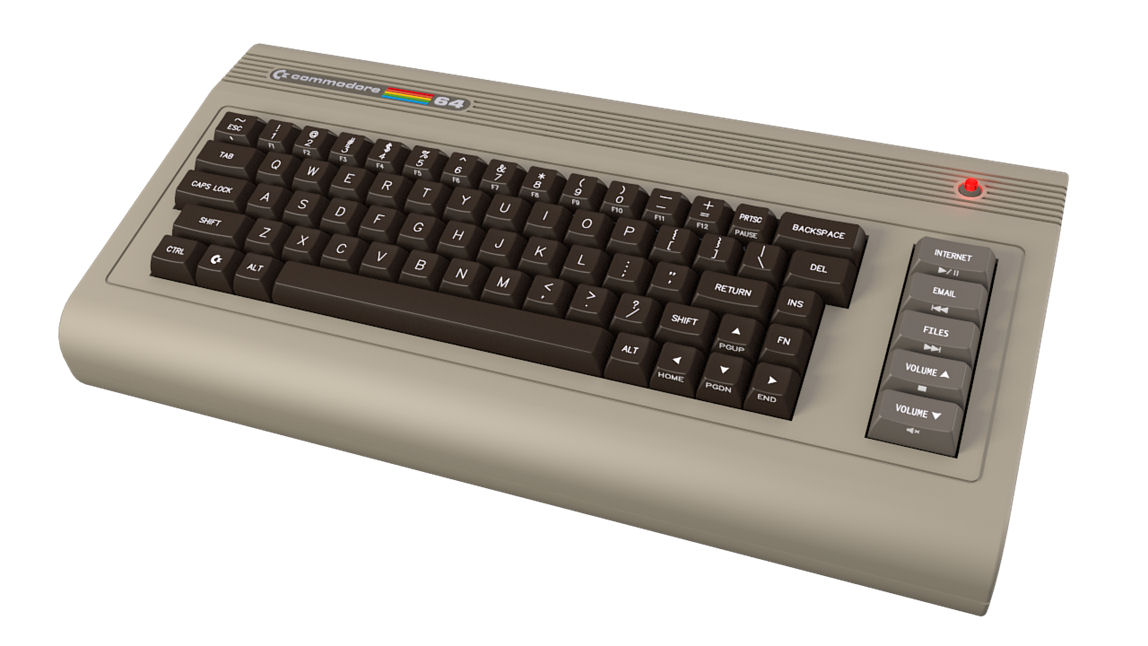

The new Commodore 64 features genuine Cherry brand key switches, which provide a feel much better than the original, with a lovely IBM classic mechanism and click sound. The keys are the exact same shape as the original and are color matched. No expense has been spared. This is the ultimate hackers keyboard on which to wield your key-fu.

Modern Media for a Modern Day Computer

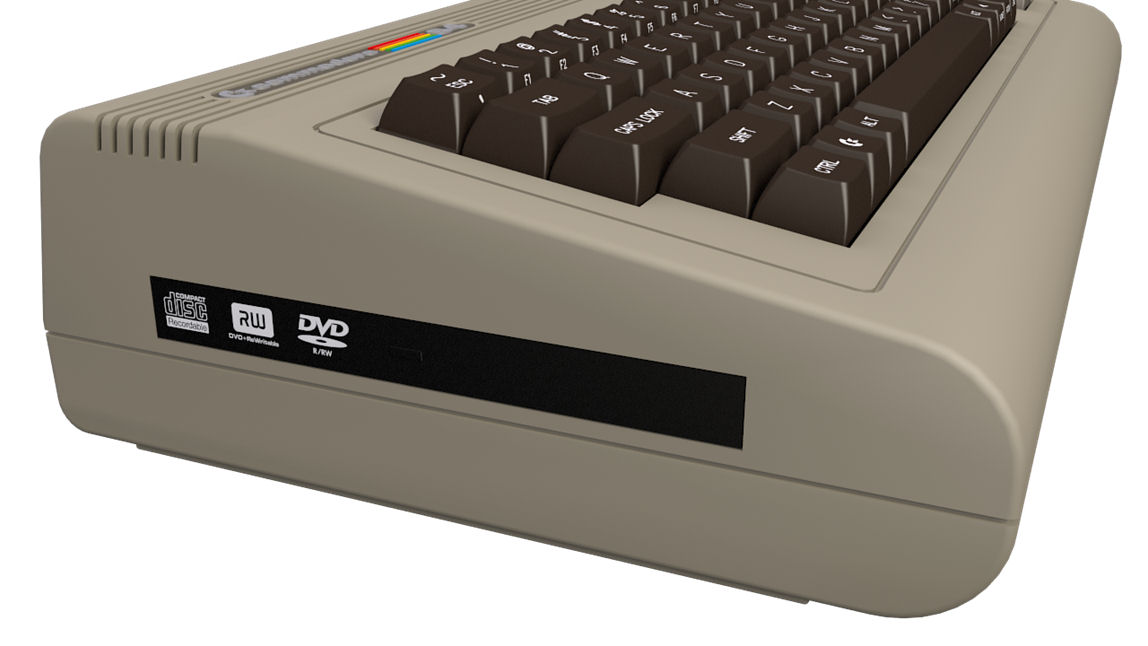

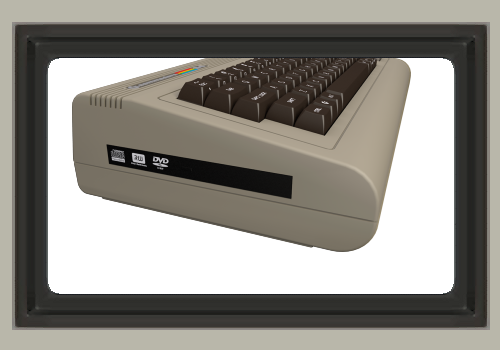

The new Commodore 64 also features a slot or tray load DVD R/W(Bluray optional) on the left side of the unit.

The base Commodore 64 comes with 2 GB of DDR3 memory and is expandable to 4 GB.

A 21st Century Update

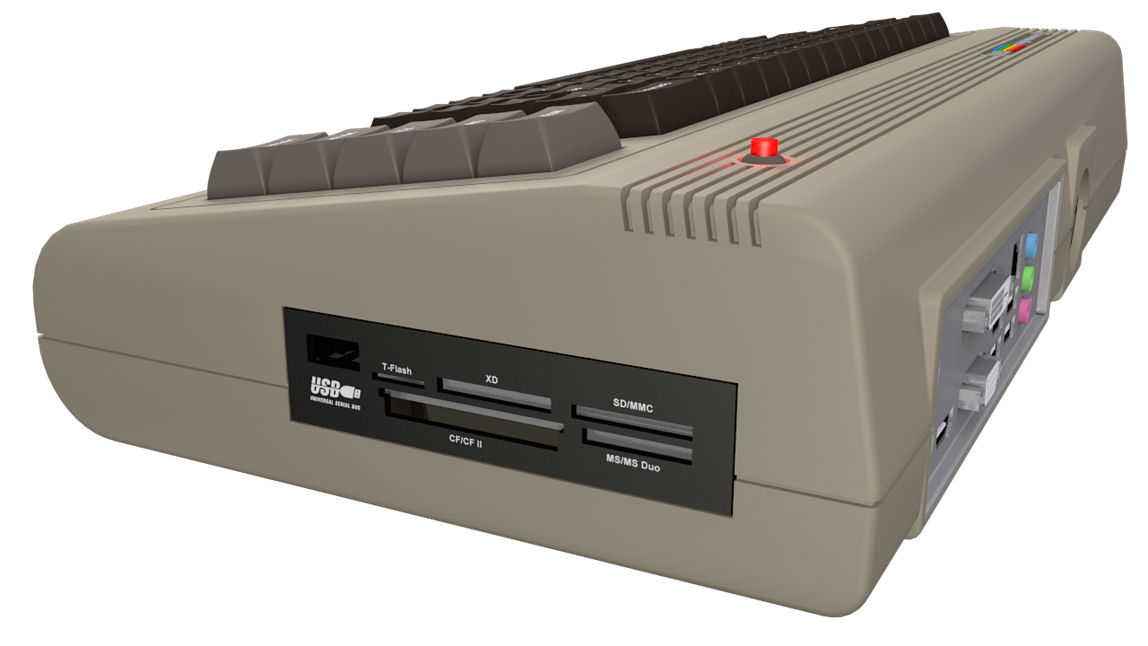

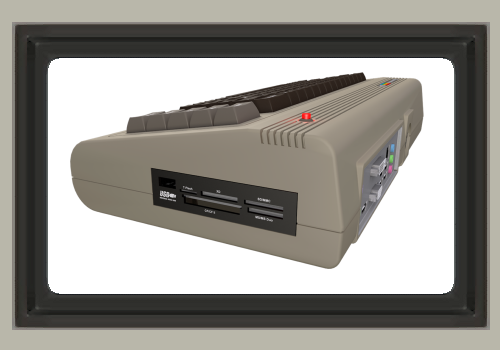

A multi format card reader/writer and a USB slot are provided on the right side of the unit. There are an additional 4 USB slots on the rear of the unit for all your peripheral needs.

The classic power light is now the power button.

Connects to the Latest TVs and Monitors

The new Commodore 64 can be connected to the latest televisions and monitors, and can deliver 1080p HD quality video playback and 6 Channel High Definition Audio for an excellent home theater experience. It also incorporates wireless n wifi for exceptional internet video streaming quality.

The New Commodore 64 Is Fun!

Play all your favorite 8-bit era games within seconds of turning the Commodore 64 on, by either selecting the C64 icon from the boot menu to run a C64 emulator directly, or from a media center program within our own Commodore Operating System.

Note: Commodore OS 1.0, along with emulation functionality and classic game package, will be mailed to purchasers when available. In the meantime, units come with the Ubuntu 10.10 operating system on CD ready to install.

A Computer for Work or for Play

Don't forget that the new Commodore 64 is a fully functional PC compatible, so you can even install and use the latest versions of Windows if you really feel you need to. We provide a beautiful graphical boot menu at start up from which Windows can be selected to run, so you needn't lose any of the functionality of the new C64's included Commodore operating systems.

Technology

MODEL:		Commodore 64x
PROCESSOR:		Intel® Atom D525 1.80GHz (Formerly Pineview-D)
CHIPSET:		Intel NM10 (Formerly Tiger Point) Next-Generation NVIDIA ION Graphics (ION2)
MEMORY:		2 x DDR2 667/800 Single Channel DIMM slots (up to 4 GB)
GRAPHICS:		Next-Generation NVIDIA ION Graphics Processor
AUDIO:		Realtek ALC662 6-CH HD Audio Nvidia L-PCM digital audio (HDMI 1.3) can support 7.1 output with external decoder
LAN:		Realtek RTL8111DL PCI-E Gigabit Ethernet
STORAGE:		Intel NM10 2 SATA2 3Gb/s ports JMicron® JMB362 SATA controller 2 Internal SATA2 3.0Gb/s port with RAID 0, 1, JBOD.
FEATURES:		- ACPI S3 Compliant - ECO-design for EuP Standard - 12 VDC jack on back panel for external power supply - Dedicated DDR3 512MB Graphics Memory Onboard - Premium DirectX 10 graphics with advanced digital display connectivity - PureVideo™ Full 1080p HD video and Blu-ray playback - NVIDIA® CUDA™ technology to accelerate the most demanding applications - Premium Windows experience with Windows Vista and Windows 7
ONBOARD I/O CONNECTORS:		1 mini PCI Express x1 Slot 1 Serial header (RS232) 4 SATA2 3Gb/s Connectors with RAID 0, 1, JBOD functions (SATA#3,#4) 2 USB Pin Headers for up to 3 additional USB 2.0 Ports 1 8 bit GPIO header 1 CIR header 1 9-pin Audio Connector 1 Front Panel Connector 3 Fan Headers 1 4-pin Power Connector

Specifications

MODEL:		Commodore 64x

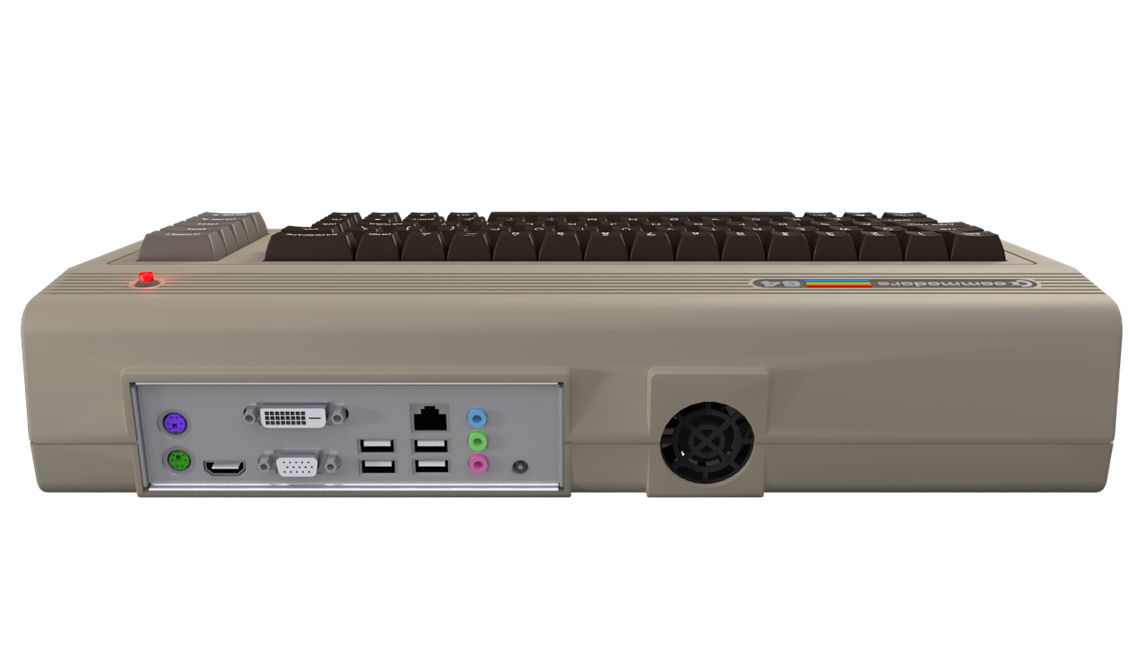

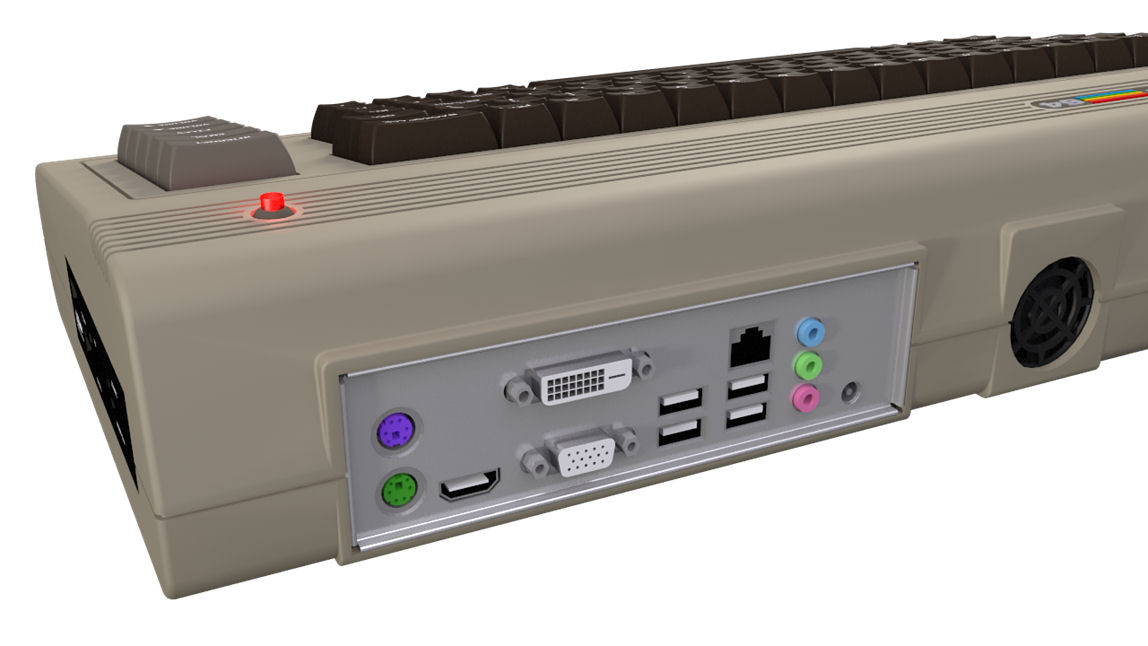

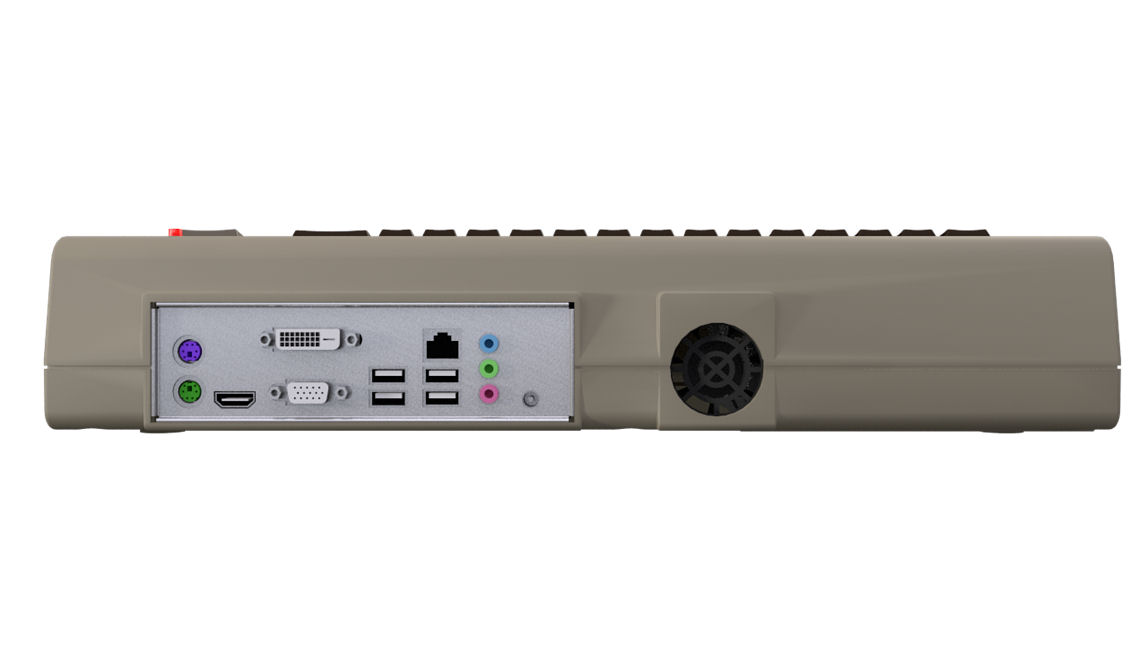

BACK PANEL CONNECTORS:		1 12V DC Jack 1 PS2 KB/Mouse connectors 1 HDMI 1 DVI-D 1 VGA 4 USB 2.0 1 RJ45 LAN (10/100/1000) 3 3.5mm Audio with S/PDIF out

Configurations

	C64x Barebones	C64x Basic	C64x Standard	C64x Deluxe	C64x Ultimate

Case, chassis and keyboard
Card Reader (multi format + USB port)
Intel Atom D525 1.8GHz Dual Core CPU
NVIDIA ION2 Graphics (DDR3 512MB)
Motherboard (mini-ITX & 12V DC P/S)
2Gb Memory (DDR2 667/800)
4Gb Memory (DDR2 667/800)
WiFi(802.11 b/g/n) and Bluetooth
DVD Tray Drive (R/W)
DVD Slot Drive (R/W)
BluRay Drive
160Gb Hard Drive
250Gb Hard Drive
500Gb Hard Drive
1Tb Hard Drive

Price (USD)	$250	$595	$695	$795	$895
