MODEL: | | Commodore VIC-Pro |
CPU SUPPORT: | | Intel® Core™2 Duo, Intel® Core™2 Quad @ 1066MHz FSB LGA775 up to 95W. Intel® Pentium® D Processors with Hyper-Threading Technology, Intel® Celeron® D processor, support from 1.3GHz ~ 3.4GHz 800/533/400MHz System Bus. Supporting 9x, 5x & 6x series processors with EM64. |
MOTHERBOARD CORE LOGIC: | | Intel G31 Express Chipset |
MEMORY: | | 2xDDR2 240-pin sockets, up to 4GB. Supports PC2-6400 800MHz 240 PIN DIMMs. |
HDD SUPPORT: | | Integrated Serial ATA controller facilitates high-speed transfers at up to 3Gbps for each of the four ports. Allows easier hard drive upgrades and expansion for new SATA optical drives. 2x SATA2 ports. |
VIDEO & GRAPHICS: | | Intel® Graphics Media Accelerator 3100. 3D enhancements enable greater flexibility and scalability and improved realism with support for Microsoft DirectX 9.0c Shader Model 2.0, OpenGL 1.4. Intel® Graphics also support the highest levels of the Windows Vista Aero experience. Stunning media, incredible visuals and new 3D capabilities. For business users, Intel validates the chipset, processor, graphics and software stack to provide a well-tested platform with support for Microsoft* Windows Vista, Windows* XP, Linux (top distributions) and OS/2 (SciTech). Dynamic Video Memory Technology (DVMT) 3.0 supports up to 289MB of Shared Video Memory; system memory is allocated where it is needed dynamically. Supports built-in Dual/Multi-Monitor windows displays using LCD monitor & DVI external display |
NETWORKING: | | 1 Gigabit (GbE) Fast Ethernet, using Realtek RTL 8168B/8111C. |
AUDIO: | | Realtek High Definition Audio enables premium digital surround sound and delivers advanced features such as multiple audio streams and jack re-tasking. On-board AC'97 2.2 compliant 3D audio, SoundBlaster Pro compatible. Two built-in 2.5watt stereo speakers with three audio jacks for Audio Out, Line-in, and Microphone. Dolby Digital 5.1 surround sound, delivering six channels of enhanced sound quality. |
EXPANSION SLOTS: | | One PCI-e One Mini PCI |
SYSTEM BIOS: | | AMI Flash BIOS supports ACPI, API, DMI, Plug & Play, and security password. Supports booting from HDD, PXE, LAN, CD-ROM, and ANY USB device. |
EFI: | | Extensible Firmware Interface is a revolutionary standard to manage the booting process of next-generation PCs in a modular, interactive way. EFI standards allow the user to boot multiple operating systems, with a fully graphical interface and instant recognition of the peripherals. This feature requires the purchase and installation of a small, internally mounted module, supplied by others, that connects to an available motherboard USB header socket. |
OPERATING SYSTEM COMPLIANCE: | | Microsoft Windows 7 (Full Aero)/ Vista/ XP/ 2000, LINUX. |
| | |
|
|
MODEL: | | Commodore VIC-Pro |

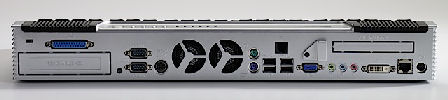

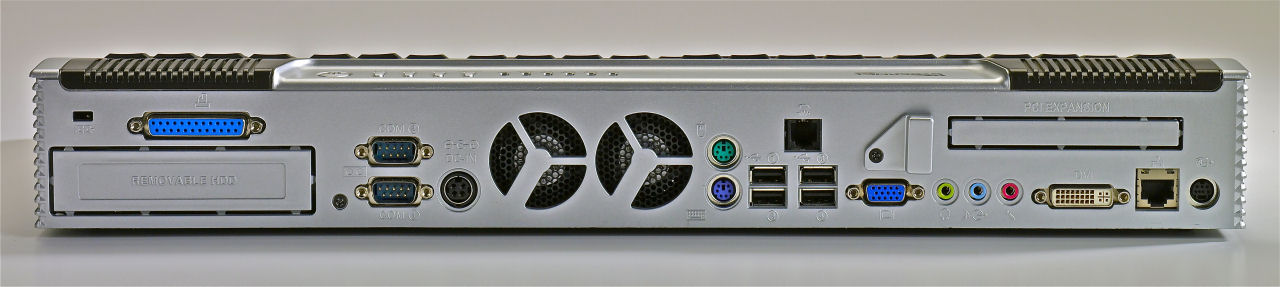

I/O PORTS: | | 4 USB 2.0 Ports with transfer rate up to 480Mbps, 2 RS-232 Serial Ports, 1 Parallel Port supporting SPP/EPP/ECP, 1 PS/2 mouse port, 1 POS or PS/2keyboard port, 1 DVI. |
TOUCH PAD: | | Built-in Synaptic two-button touch-pad with vertical and horizontal scroll function. |

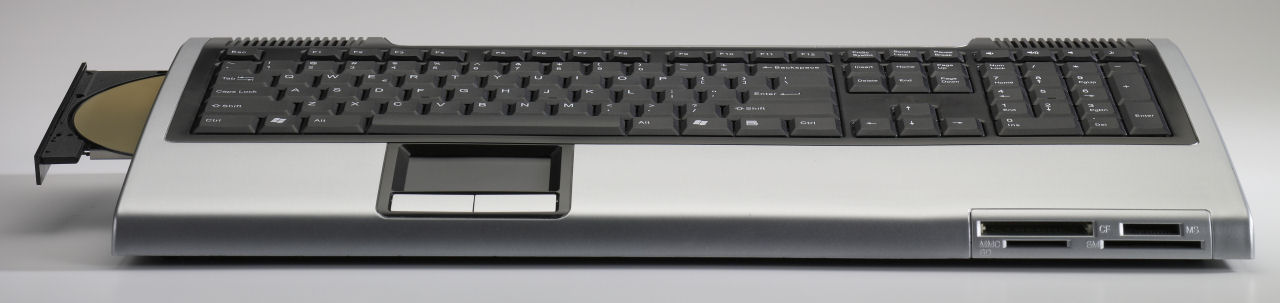

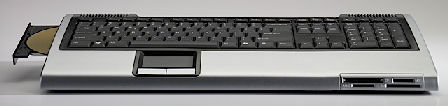

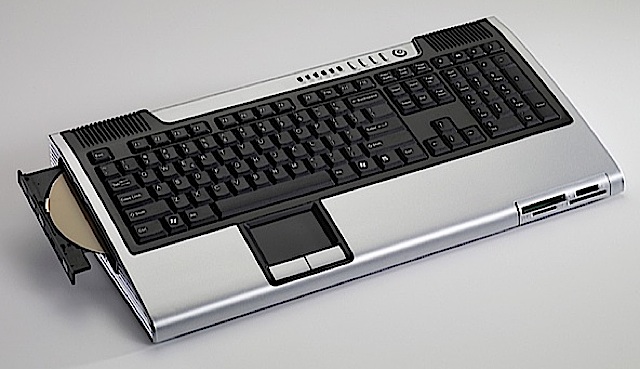

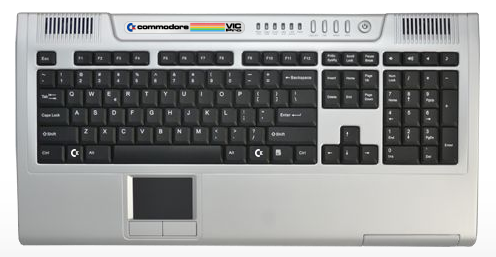

KEYBOARD: | | Full-Size Enhanced Windows keyboard, detachable keytop matrix. |

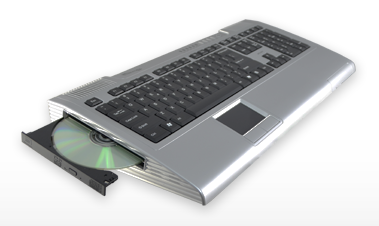

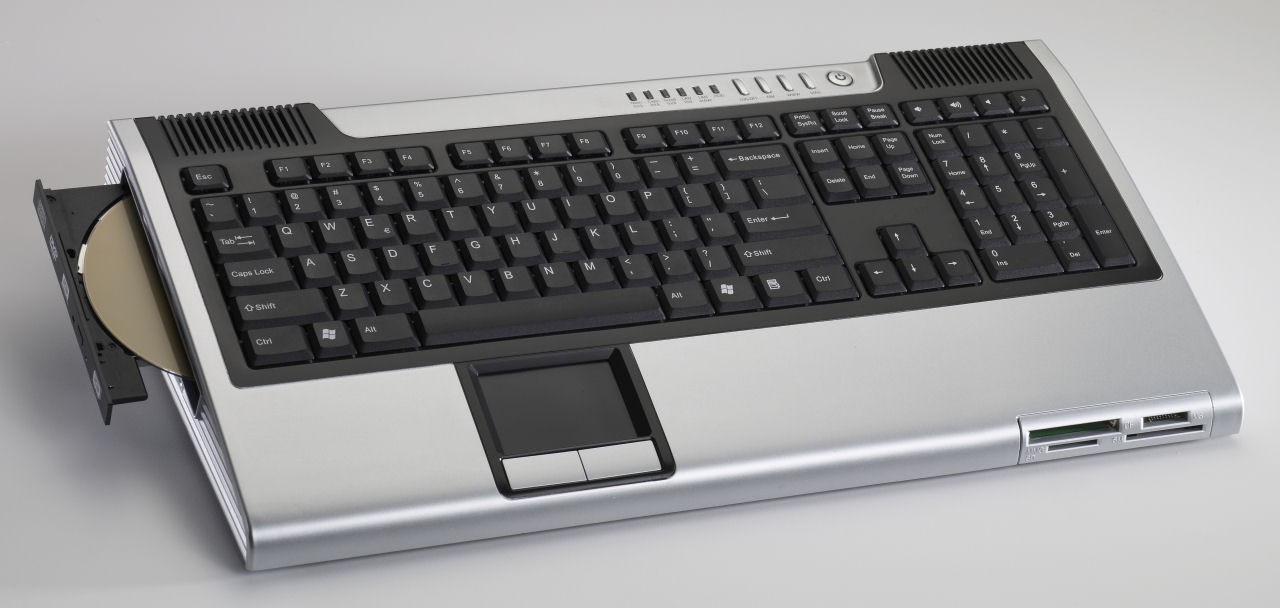

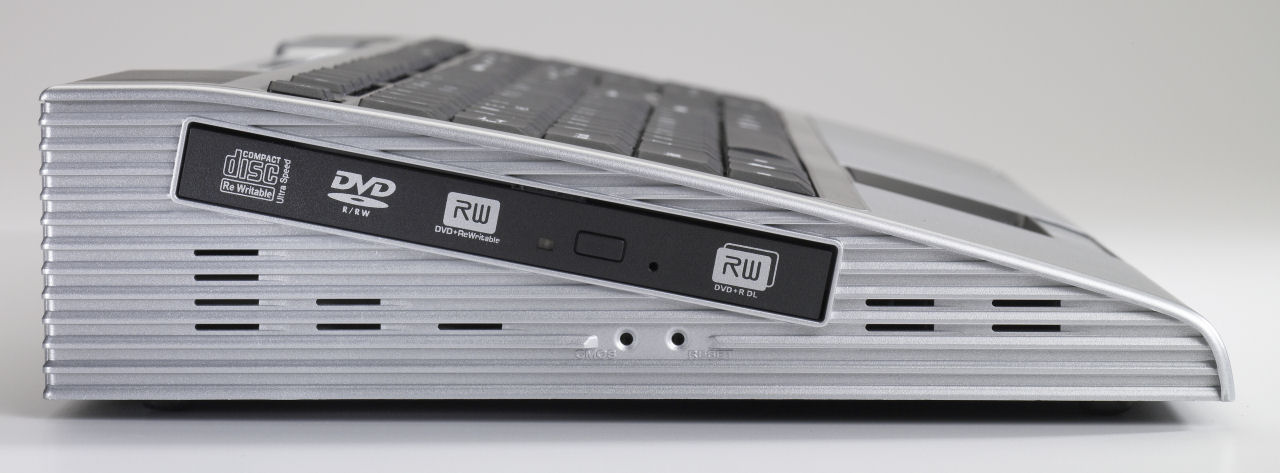

OPTICAL DRIVE: | | One slim type Optical Drive, CDRW-DVD, or DVD+/-RW. |

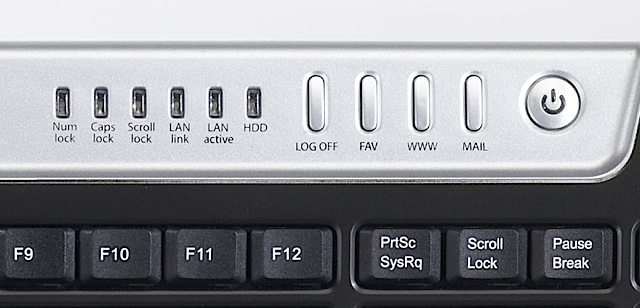

LED INDICATIORS: | | On/Off LED, HDD, LAN Active. |
HOTKEYS: | | WWW, Mail, Favorite, Log Off. |

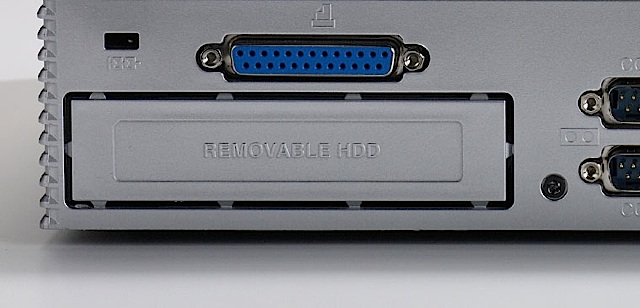

REMOVABLE HDD: | | Optional removable 2.5" hard disk drive. |
POWER SUPPLY: | | Uses 180Watt AC Adapter. Input: universal 100 ~ 240V AC, 50-60Hz. Output: 19V DC, 9.48A, Controlled by Dual Mode Power button on the keyboard. Low power sleep mode saves energy. |
BIOS SECURITY: | | AMI BIOS System POST and BIOS setup password protection. TCG/TPM version 1.2 Support |
SECURITY LOCK: | | Security lock slot located on the back of the system case. |
DIMENSIONS: | | 18.5"W x 9.0"D x 0.5"H front, 2.5"H rear. |
WEIGHT: | | Unit: 7.4 lbs (3.4kg), Power Adapter: 1.1lbs (0.5kg). |
OPERATING ENVIRONMENT: | | Ambient Temperature: 0°C ~ 50°C (operating). |
RELATIVE HUMIDITY: | | 10% ~ 90% (non-condensing) |
AUDIO INPUT: | | Yes |
AUDIO OUTPUT: | | Yes |
RELATIVE HUMIDITY: | | 10% ~ 90% (non-condensing) |
COLOR: | | Silver Only. |
CERTIFICATIONS: | | FCC Class A, CE |
| | |
|
VIC-Pro Barebones |
VIC-Pro Standard |
VIC-Pro Deluxe |
|
Case, chassis, keyboard and external power supply.
|
|
|
|

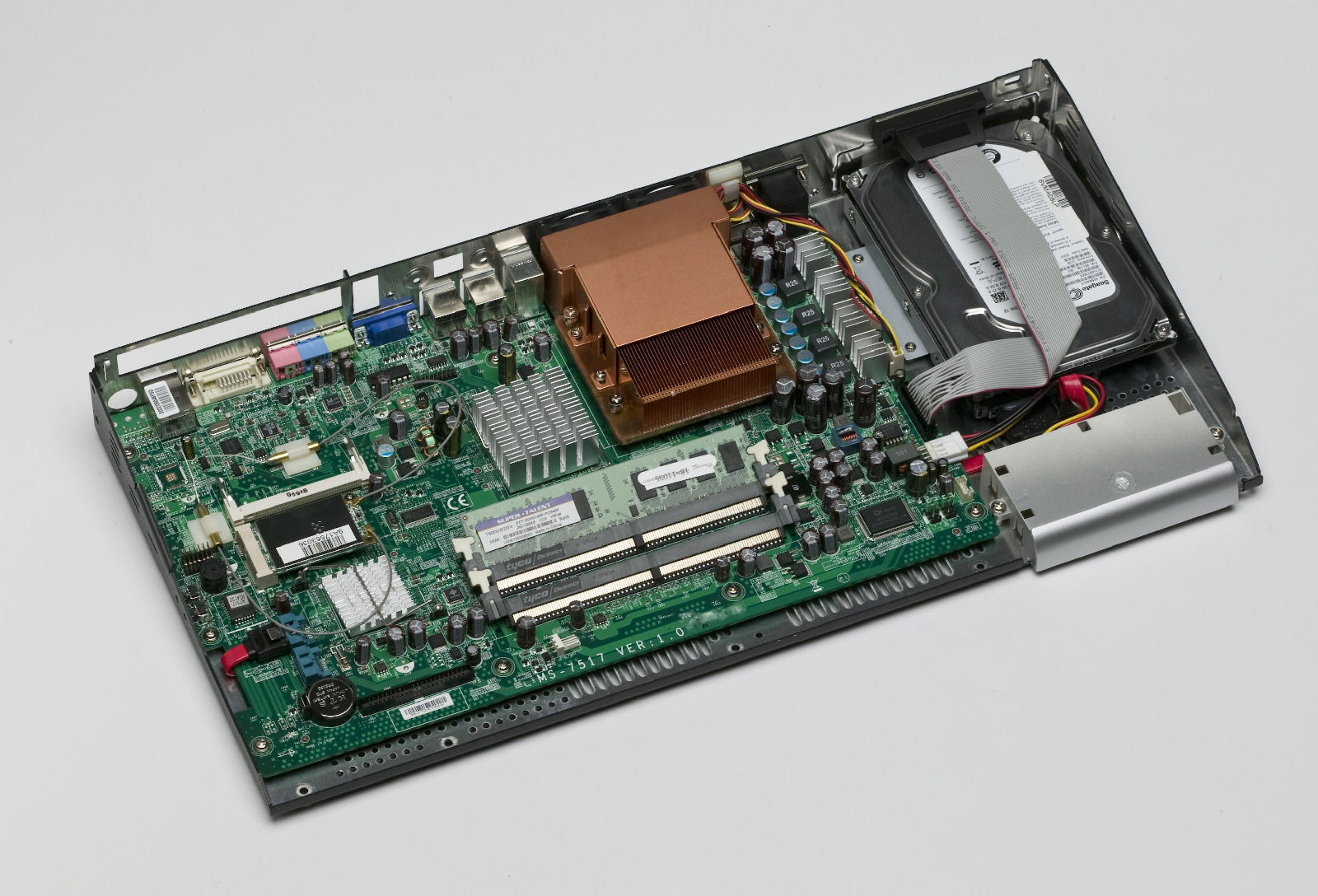

Motherboard (1066MHz FSB, socket LGA775) |
|
|
|
Intel® Graphics Media Accelerator 3100 |
|
|
|
Intel Core 2 Duo CPU(E7500, 2.93GHz, 3MB, 1066MHz FSB) |
|
|
|
Intel Core 2 Quad CPU(Q9650, 3.0GHz, 12MB, 1333MHz FSB) |
|
|
|
2Gb Memory (DDR2/800MHz SDRAM) |
|
|
|
4Gb Memory (DDR2/800MHz SDRAM) |
|
|
|
WiFi(802.11 b/g/n) and Bluetooth |
|
|
|
DVD Tray Drive (Dual-Layer DVD+/-RW drive)
|
|
|
|
500Gb Hard Drive (SATA 7200 RPM) |
|
|
|
1Tb Hard Drive (SATA 7200 RPM) |
|
|
|
|
Price (USD) |
$495 |
$895 |
$1195 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Commodore® trademark used under exclusive worldwide license by Commodore USA, LLC for its line of AIO (All-In-One) keyboard computers, and is the trademark of Commodore Licensing, BV, registered in the United States and other countries. Amiga® trademark used under exclusive worldwide license by Commodore USA, LLC for its line of AIO (All-In-One) keyboard computers, and is the trademark of Amiga Inc., registered in the United States and other countries.
|
|
